Features:
- Visual Flicker Free
- High Energy efficient, High lifetime
- Up to 18W 1900lm, 9W 950lm, Surge protection 1500V
Benefits:
- Stress free ambient light
- Up to 60% energy saving compared to conventional T8 Tube, consume less electricity
- More suitable for unstable power grid environtment, Easy installation
Applications:

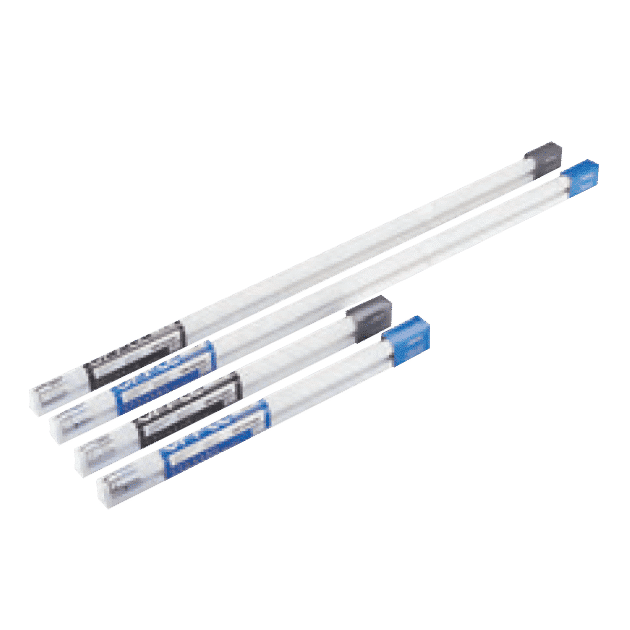

LED U2 T8 Empty Batten 1200mm suits indoor commercial and project areas.
- Warehouse: general lighting for storage areas and walkways.
- Office: flicker-free light for work areas and meeting rooms.
- Parking area: indoor and covered parking.
- Projects: hotels, shopping malls, offices, and residential buildings.
The set is rated IP20. Use it in dry, indoor areas.
Specifications:
| Model | Power (W) | Lumen (lm) | CCT (K) | Efficacy (lm/W) | CRI | Power Factor | Lifetime (L70) |
| LED U2 T8 Set 1200mm 18W 3000K | 18 | 1800 | 3000 | 100 | 70 | 0.5 | 15,000 h |
| LED U2 T8 Set 1200mm 18W 4000K | 18 | 1900 | 4000 | 105 | 70 | 0.5 | 15,000 h |
| LED U2 T8 Set 1200mm 18W 6500K | 18 | 1900 | 6500 | 105 | 70 | 0.5 | 15,000 h |
| Application Conditions: | |
| IP | IP20 |
| Operating Temperature | -20 to 45 °C |
| Application Temperature | 25 °C |
| Storage Environment | -25 to 50 °C |
| Electrical Supply: | |
| Frequency (Hz) | 50/60 |
| Voltage (V) | 220-240 |
| AC/DC | AC |
| Power input | Double end |
Mechanical Properties:
| Optical Material | Glass |
| Housing Material | Aluminum + Iron |
| Finishing Colour | White |
Dimensional Drawing:
| 18W | |
| L (mm) | 1218 |
| W (mm) | 31.1 |
| H (mm) | 42.8 |
Packaging Information:
| Item Description | Single Box (1 pc/box) | Packaging Unit | |||
| Dimensions (mm) (LxWxH) | Gross Weight (kg) | Dimensions (mm) (LxWxH) | Gross Weight (kg) | Packing Qty (pcs/unit) | |
| LED U2 T8 Set 1200mm 18W | 1230X45X35 | 0.50 | 1250X235X235 | 9.9 | 20 |
Which T8 You Should Choose:
| Product | Type | Power and light output | CRI, power factor, lifetime | Choose it when |
| LED T8 U1 S | Utility tube | 9W (600 mm): up to 950 lm. 18W (1200 mm): up to 1900 lm | CRI 70, PF 0.5, 15,000 h | You need a tube for a single-end batten at 9W or 18W |
| LED P2 T8 | Performer tube | 7W (600 mm): 1100 lm. 15W (1200 mm): 2200 lm | CRI 80, PF 0.9, 50,000 h | You want the longest life and the highest efficacy, up to 150 lm/W |
| LED E T8 | EcoMax tube | 10W (600 mm): up to 1000 lm. 20W (1200 mm): up to 2100 lm | CRI 80, PF 0.9, 20,000 h | You want CRI 80 and 20,000 h life with even, balanced light |
| LED U2 T8 Empty Batten 1200mm | Utility batten set | 18W (1200 mm): 1800 to 1900 lm | CRI 70, PF 0.5, 15,000 h | You need a ready 1200 mm batten set with double-end power input for indoor lighting |
Frequently Asked Question LED U2 T8 Empty Batten
1. Apa beda LED U2 T8 Empty Batten dengan LED T8 U1 S?
U1 S adalah tabung single end, sedangkan U2 menerima daya dari kedua sisi. Pilih sesuai jenis input daya pada armatur Anda.
2. Berapa terang LED U2 T8 Empty Batten 1200mm 18W?
Outputnya 1800 lm pada 3000K dan 1900 lm pada 4000K atau 6500K. Efikasinya 100 sampai 105 lm/W.
3. Apakah LED U2 T8 Empty Batten bisa dipakai di luar ruangan?
Tidak disarankan. Produk ini berperingkat IP20, jadi sebaiknya dipakai di dalam ruangan yang kering seperti gudang tertutup, kantor, dan parkiran dalam gedung.
4. Apakah Adika Mitra Sejahtera distributor resmi OPPLE?
Ya. PT Adika Mitra Sejahtera adalah distributor resmi OPPLE Lighting. Kami melayani pembelian grosir dan kebutuhan proyek.
Dapatkan Penawaran Harga LED U2 T8 Empty Batten untuk Proyek Anda
PT Adika Mitra Sejahtera adalah distributor resmi OPPLE Lighting. Kami melayani pembelian grosir dan kebutuhan proyek gudang, kantor, parkiran, dan gedung komersial. Kirim jumlah, warna cahaya, dan lokasi pemasangan yang Anda perlukan, lalu tim kami akan menyiapkan harga proyek.
